Elephant Robotics®E5

A Brandnew-Step for Industries

Innovative / Durable / Accurate

For High-Precision and High Quality Industrial Application

Working Radius

810mm

Repeatability

±0.05 mm

Payload

5kg

Elephant Robotics®E5 features a payload of 5kg, a working radius of 810mm and repeatability of ± 0.05mm, it is a perfect robotic assistant for industrial manufacturing. With high precision and high flexibility, Elephant Robotics®E5 can do some delicate work conveniently. What's more, Elephant Robotics®E5 has a certain degree of rigidity because of its unique symmetrical structure. It can even complete the work done by some traditional industrial robots.

Stable and Rigid

Durable and Precise

Collaborative and Safe

Easy Programming

Stable and Rigid

Different from the cantilever joint design of traditional cobots, the double support construction with better mechanical properties is adopted in the main stressed joints of Elephant Robotics®E5. This symmetrical structure solves the problem of instability and it helps Elephant Robotics®E5 to have a certain degree of rigidity. It can even complete the work done by some traditional industrial robots.

Durable and Precise

Combined with the body mechanical structure optimized by CAE technology and high performance components provided by top suppliers,  the repeat positioning accuracy and life of Elephant Robotics®E5 is ensured.

Collaborative and Safe

Based on the efficient and exact collision detection algorithm, Elephant Robotics®E5 can stop immediately when the slight collision is perceived. No need to install a protective barrier. Safety of personnel is guaranteed. Customized protection units are also accepted, such as Lidar, Light Curtains, etc.

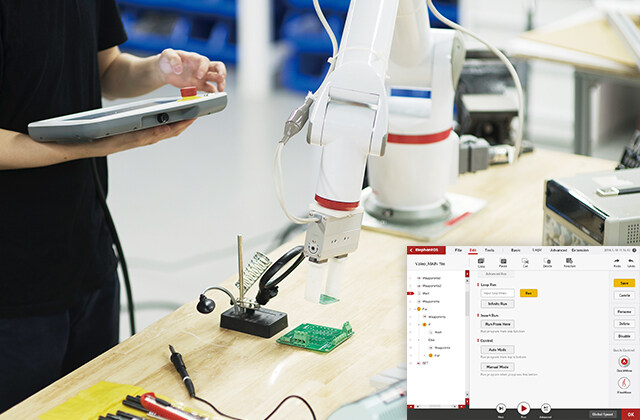

Easy Programming

Elephant 5 is using the operating system “RoboFlow” developed by Elephant Robtics, which is easy to operate smoothly. What’s more, the interface is simple and clear. Even a novice can quickly learn how to program. It also supports custom programming and secondary development.

Specifications

Repeatability
±0.05mm
Payload
5kg
Reach
810mm
Degrees of Freedom
6 axis
Operating Temperature Range
0-50℃
Typical Power Consumption
260W
Collaboration Operation
Test in accordance with: EN ISO 13849-1 PL d
EN ISO 10218-1: 2011-Clause 5.4.3
Programming Mode
Graphical programming
Weight
23kg

Axis Movement Robot Arm Working Range
J1/J4/J6: ±180° , J2/J3/J5:±120°
Axis Maximum Speed
225°/sec
Typical Tool Speed
1m/sec

IP Classification
IP42
Noise
<70dB
Robot Mounting
Any angle
Dimensions Robot Base
φ180mm
Materials
Aluminium alloy,ABS,Rubber

Recommended Fields

Elephant Robotics can help you achieve automation, improve your productivity, quality and safety level in a timely and cost-cutting manner.

3C electronics

Injection Molding

Pharmaceutical and Chemical Industry

Automobile Industry

Metal Processing

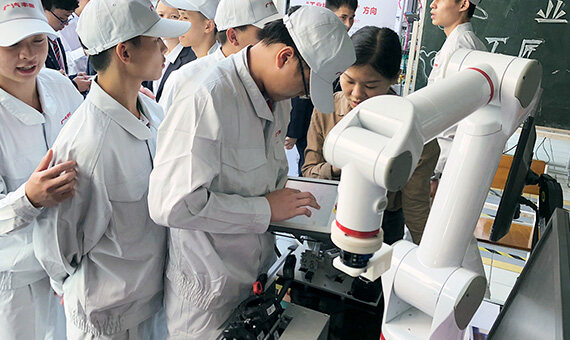

Education & Scientific Research

Applications

Elephant Robotics®E5 has been applied in different situations by many companies, including  Global 500 Companies.

Handling

Pick and Place

Assembly

Outstanding Clients

We are happy to work and share creative vision with our distinguished partners.

DOWNLOADS

Elephant Robotics®E5
User Manual

This manual describes the precautions for proper installation and use of the Elephant series robot.

Elephant Robotics®E5
Specifications

The technical specifications of Elephant 5.

RoboFlow Operation and Programming Manual

This manual describes the issues to be aware of when operating and programming a Robot.
