Elephant Robotics®C3
Small Body, Big Dream
All-in-One | Voice Control | Cloud Programming
For commercial purpose and scientific research
Working Radius
600mm
Repeatability
±0.05mm
Payload
3kg
Elephant Robotics®C3 is the latest all-in-one 6-axis collaborative robot from Elephant Robotics, aiming for the perfect assistant in commercial scenarios and scientific research. With a modular and compact body, Elephant Robotics®C3 can save you tons on maintenance costs. This versatile robotic arm features two creative functions ”Voice Control” and “Cloud Programming” , it also supports custom programming and secondary development. What's more, you can operate it through a computer, a Pad or a phone, no need to use an extra teach pendant.
All in One
Voice Control
Collaborative and Safe
Cloud Programming
All in One, Portable and Practical
Compared to traditional cobots，the total weight of Elephant Robotics®C3 is only 18kg, making it more portable and convenient. It is well established for its flexible operations, powerful functions and plug and play. You can enjoy Elephant Robotics®C3’s intelligence in both commercial scenarios and scientific research conveniently.

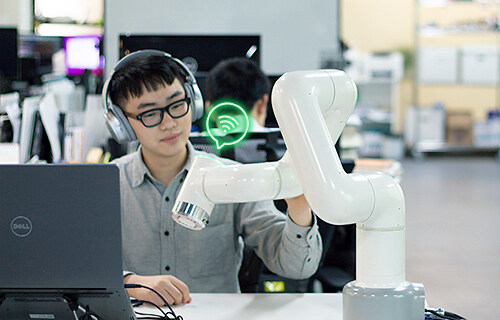

Voice Control, Super Efficient
With voice control function, you can interact with Elephant Robotics®C3 conveniently. You can ask Elephant Robotics®C3 about its condition and command it to start or stop the program by voice. Much easier and much more efficient when using Elephant Robotics®C3.

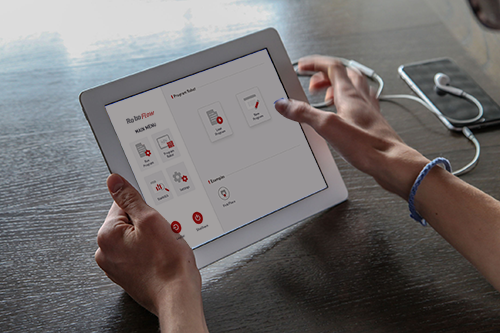

Cloud Programming, Anytime and Anywhere
No need to use an extra teach pendant, you can operate Elephant Robotics®C3 through a computer, a Pad or a phone. Programming becomes easier.Elephant Robotics®C3 is using the operate system developed by Elephant Robotics which is user friendly and compatible——API can be integrated with any programming language, SDK supports Python, C++, Java；offline programming and extension on ROS are supported；Various function modules, processing package is constantly updated in RoboFlow…
Collaborative and Safe,
Enjoy Creation
Elephant Robotics®C3 can be equipped with various end effectors and you can quickly replace the end effector according to your need.Elephant Robotics®C3 is designed for creation and more applications are waiting for your discovery. As for safety, Elephant Robotics®C3 can stop immediately when the slight collision is perceived based on the efficient and exact collision detection algorithm. No need to install a protective barrier.
Specifications
| Repeatability | ±0.05mm, ±0.02mm[lite] |
| Payload | 3kg |
| Reach | 600mm |
| Degrees of Freedom | 6 axis |
| Operating Temperature Range | 0-50℃ |
| Typical Power Consumption | 180W |
| Collaboration Operation | Test in accordance with: EN ISO 13849-1 PL d EN ISO 10218-1: 2011-Clause 5.4.3 |
| Programming Mode | Graphical programming |
| Weight | 18kg |
| Axis Movement Robot Arm Working Range | J1: ±360°, J2: ±180°, J3: ±165°, J4/J5/J6：±360° |
| Axis Maximum Speed | J1/J2/J3：180°/sec, J4/J5/J6：225°/sec |
| Typical Tool Speed | 1m/sec |
| IP Classification | IP42 |
| Noise | <70dB |
| Robot Mounting | Any angle |
| Dimensions Robot Base | φ150mm |
| Materials | Aluminium alloy, PC, Rubber |
| Interface and Openness | SDK(Python, C++,JAVA), API, ROS |
| I/O Ports | Digital Input:12, Digital Ouput:8 |
| Tool I/O Ports | Digital Input:3, Digital Ouput:3 |
| I/O Power Supply | 24V 2A |
| Communication | TCP/IP |
| Power Supply | DC 48V, 10.5A; DC 24V, 4.5A |
working range
Elephant Robotics®C3
working range (mm)

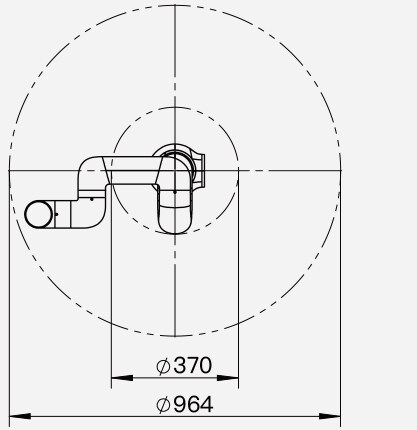

Top view
Lateral view
Elephant Robotics®C3
product details

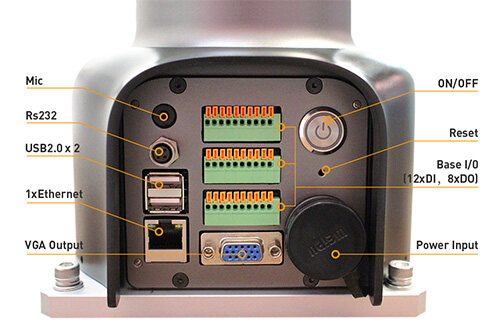

Base Detail

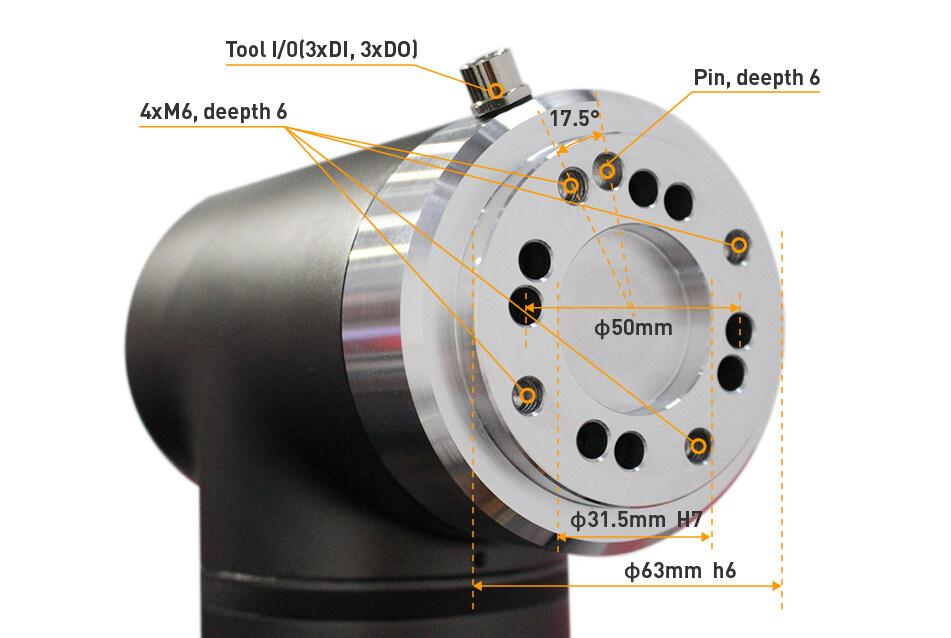

End-effector Detail
Applications
Elephant Robotics®C3 can be applied in commercial scenarios, scientific research, education scenarios, medical scenarios, showing case scenarios and etc. At present, we have received remarkable feedbacks from our customers, including Global 500 Companies, famous universities and institutions.
Smart barista to enlarge your business, can be applied in various commercial scenarios

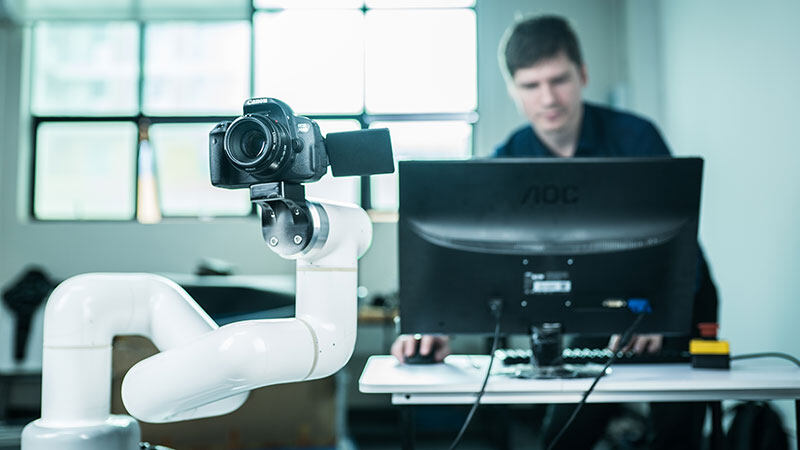

Perfect helper in photographic studio, much more accurate and stable

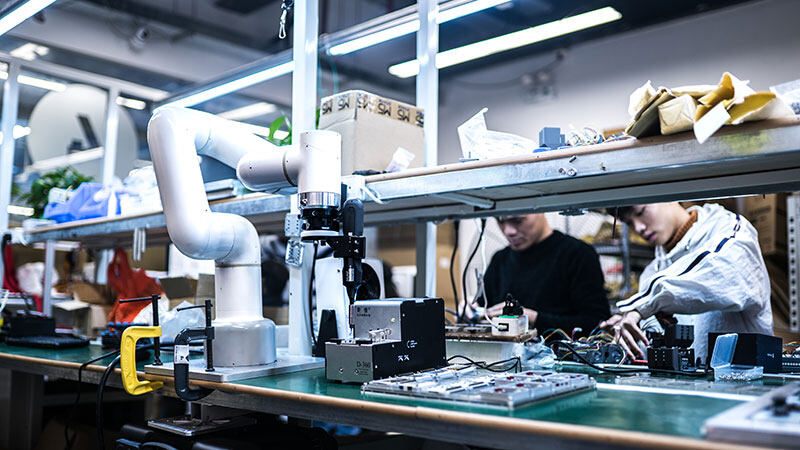

Replace repetitive work, produce efficiently, create more value

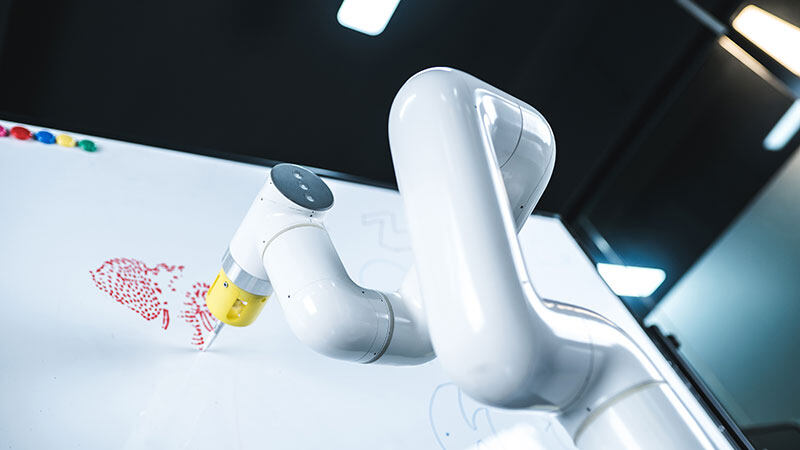

Continuously print out photos, the perfect combination of artistic creation and robot
Helpful assistant in workshop, human and robot collaboration, infinite creativity
Compact All-In-One design, super fit in AGV solutions, much more flexible
Outstanding Clients
We are happy to work and share creative vision with international partners such as:
DOWNLOADS
Elephant Robotics®C3 User Manual
This manual describes the precautions for proper installation and use of the Panda series robot.
Elephant Robotics®C3 Specifications
The technical specifications parameters of the Catbot.
RoboFlow Operation and Programming Manual
This manual describes the issues to be aware of when operating and programming a Robot.
