Working Radius
600mm
Repeatability
±0.5mm
Payload
2kg

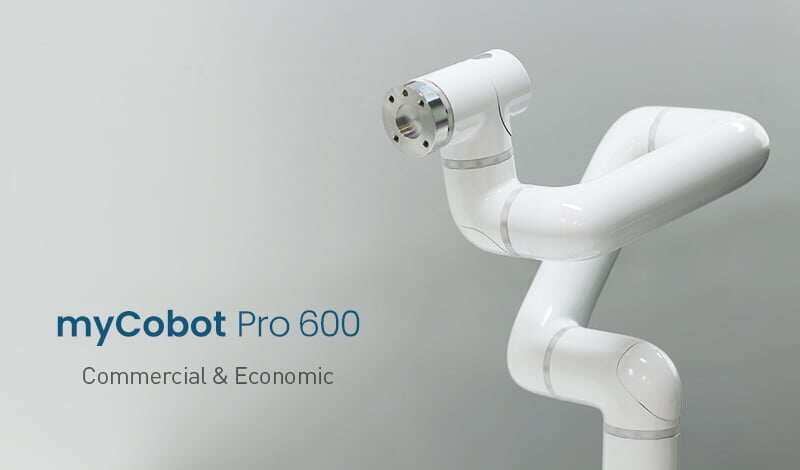

myCobot Pro-600 is designed to alternative repetitive labor force, which can be college education and commercial use. myCobot pro 600 is a reliable lightweight collaborative robot, developed by Elephant Robotics with a mini and all-in-one design.
With a dead weight of 8.8 kg , a payload of 2kg , and a working radius of 600mm. myCobot pro-600 is portable but powerful, easy to use, and super cost-effective. It has three main advantages of simplicity, safety and economy as the best choice for automated production. Deployed on the production line fast, myCobot Pro-600 reduces much costs and increases working efficiency for enterprises.
Applications
myCobot Pro-600 can be applied in commercial scenarios, scientific research, education scenarios, medical scenarios, showing case scenarios and etc. At present, we have received remarkable feedbacks from our customers, including Global 500 Companies, famous universities and institutions.
Commercial
Robot Cafe
Paper loading
Testing
Medical treatment
Tool handling and Screen holding
Repetitive scanning work
Light industry
Simple metal connecting rod bending, handling, loading and unloading
Loading and unloading of stamping baffles
PCBA board loading and unloading
Education
Robot vocational education platform
Research and development
Smart barista to enlarge your business, can be applied in various commercial scenarios
Perfect helper in photographic studio, much more accurate and stable
Replace repetitive work, produce efficiently, create more value
Continuously print out photos, the perfect combination of artistic creation and robot
Helpful assistant in workshop, human and robot collaboration, infinite creativity
Compact All-In-One design, super fit in AGV solutions, much more flexible
6-axis collaborative robot
All-in-one design & collaborative operation in safe
- The all-in-one design helps make full use of the working space and perfectly integrate into the production environment.
- The anti-collision detection function based on the precise dynamic model enables it to work well with workers.
Excellent performance & Always reliable
- Adopting harmonic reducer + servo motor, high-performance commercial light industrial manipulator.
- The structure is exquisite, convenient to carry, easy to install, and can be plug and play.
Raspberry Pi control
- Roboflow operating system independently developed and easy to use
- Support ROS/Python and other development systems
Economical & Applicable
- Ultra-high cost performance, effectively reducing costs and increasing efficiency for enterprises.
SPECIFICATIONS
| model | myCobot pro-600 |
|---|---|
| payload | 2kg |
| weight | 8.8 kg |
| Working radius | 600 mm |
| Repeatability | ± 0.5 mm |
| DOF | 6 |
| Joints range | J1 +/- 180°; J2 -270~90°; J3 +/- 150°; J4 -260~80°; J5 +/- 168°; J6 +/- 174°; |
| Power input | AC100-240V ,50/60HZ |
| IP level | IP42 |
| Operating temperature | 0 – 50 ℃ |
| Material | Material Aluminum alloy, plastic, rubber |
| Model | myCobot pro-600 |
|---|---|
| Bluetooth/wireless | Available |
| USB | USB3.0 x2; USB2.0 x2 |
| Display screen | No |
| HDMI interface | microHDMI x2 |
| Custom button | No |
| IO Port | Digital D-INPUT x6 Digital D-OUTPUT x6 |
| Emergency Stop Button | Available |
| Model | myCobot pro-600 |
|---|---|
| Servo Motor-Motor | Servo motor/brushless DC motor |
| Servo motor-reducer | Harmonic reducer/gear set |
| Servo motor-encoder | 19/12 bit |
| Servo motor-maximum speed | 2300RPM |
| Noise | <70 dB |
Working Range
myStudio
myStudio is a one-stop platform for robots of myRobot/myCobot.
The main functions of myStudio are: 1) Update the firmware; 2) Provide video tutorials on how to use the robot; 3) Provide maintenance and repair information (such as video tutorials, Q&A, etc.).

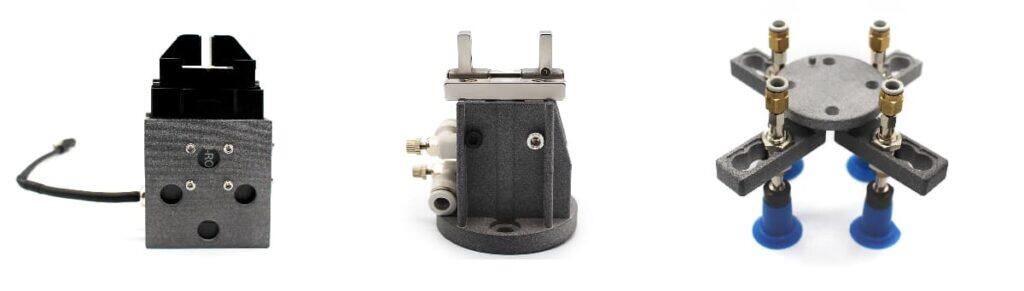

myCobot Pro Accessory
Elephant Robotics are targeted at robotic collaboration applications, making “my-series” product line.
DOWNLOADS
MyCobot Pro - Gitbook
This manual describes the precautions for proper installation and use of myCobot.
RoboFlow Operation and Programming Manual
This manual describes the issues to be aware of when operating and programming a Robot.
Detailed video tutorials could help you easily start the journey of using collaborative robots!
